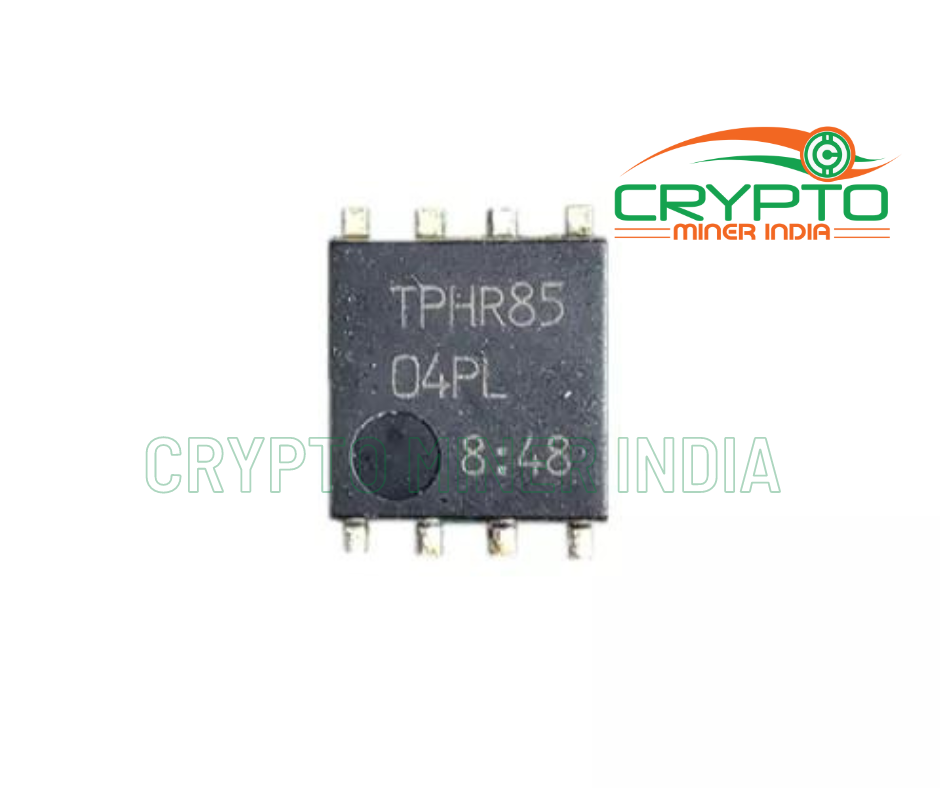

TPHR8504PL

8-Pin SOP MOSFETs Silicon N-channel MOS, suitable for high-efficiency DC-DC converters and switching voltage regulators.

Features：

1. High-speed switching

2. Small gate charge: Qsw = 23 nC (typ.)

3. Small output charge: Qoss = 85.4 nC (typ.)

4. Low drain-source on-resistance: Rds(on) = 0.7 mΩ (typ.) (Vgs = 10 V)

5. Low leakage current: Idss = 10 µA (max) (Vds = 40 V)

6. Enhancement mode: Vth = 1.4 to 2.4 V (Vds = 10 V, Id = 1.0 mA)

Specifications:

Operating temperature: – 55°C to 175°C (TJ)

Mounting type: surface mount

FET type: N-channel

Number of channels: 1 Channel

Drain to source voltage: 40V

Continuous drain current: 150A

Drain-source resistance: 850uOhms

Gate-source threshold voltage: 1.4V

Power dissipation: 170W
