Description

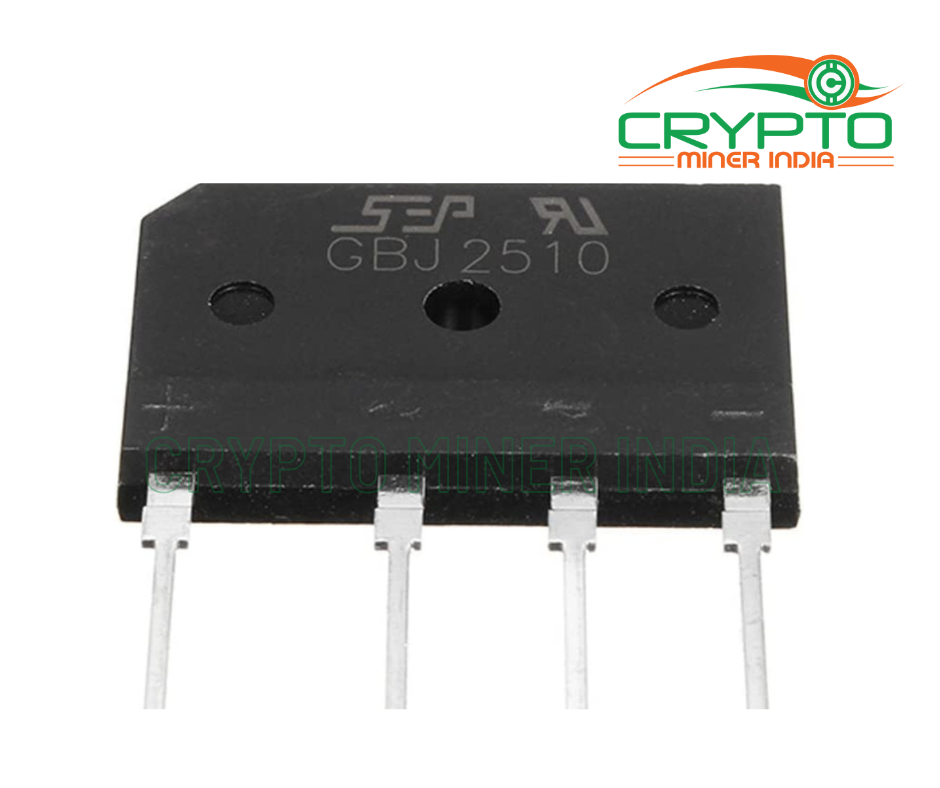

GBJ2510 Single-Phase 25.0A Glass Passivated Bridge Rectifier

The GBJ2510-F 25A glass passivated bridge rectifier features a molded plastic case material, surge overload rating up to 350A peak, lead-free finish, and is RoHS compliant.

Suitable for printed circuit board applications.

Mechanical Data:

Case: GBJ

Case Material: Molded Plastic. UL Flammability Classification 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Plated Leads, Solderable per MIL-STD-202, Method 208

Lead Free Plating (Tin Finish).

Mounting: Through Hole for #6 Screw

Mounting Torque: 5.0 in-lbs Maximum
