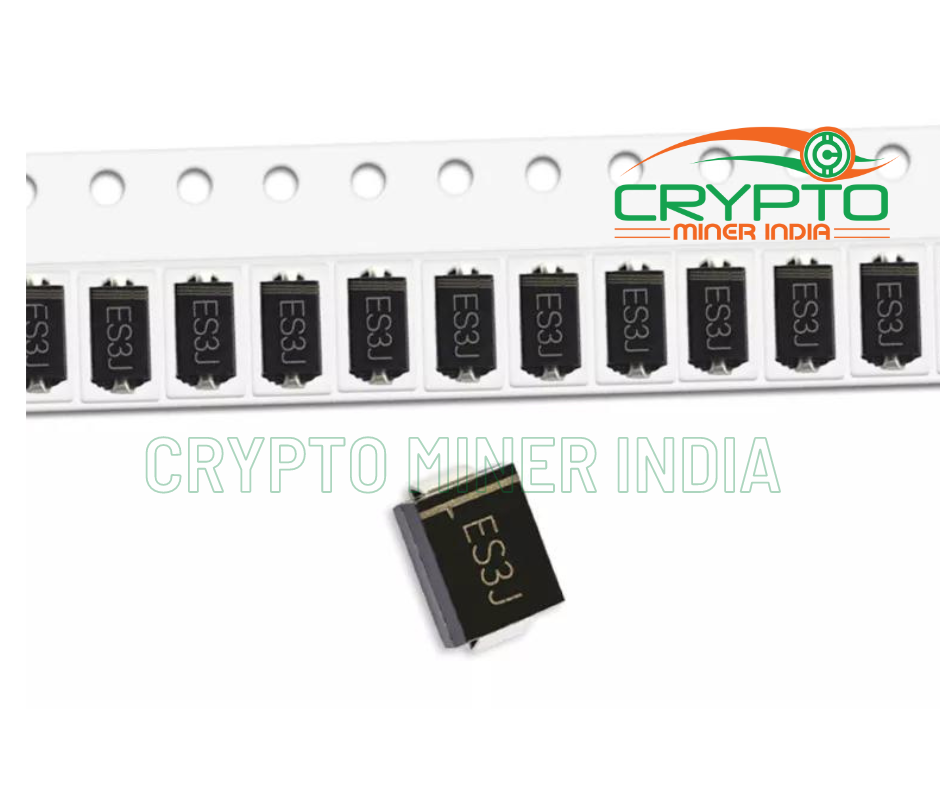

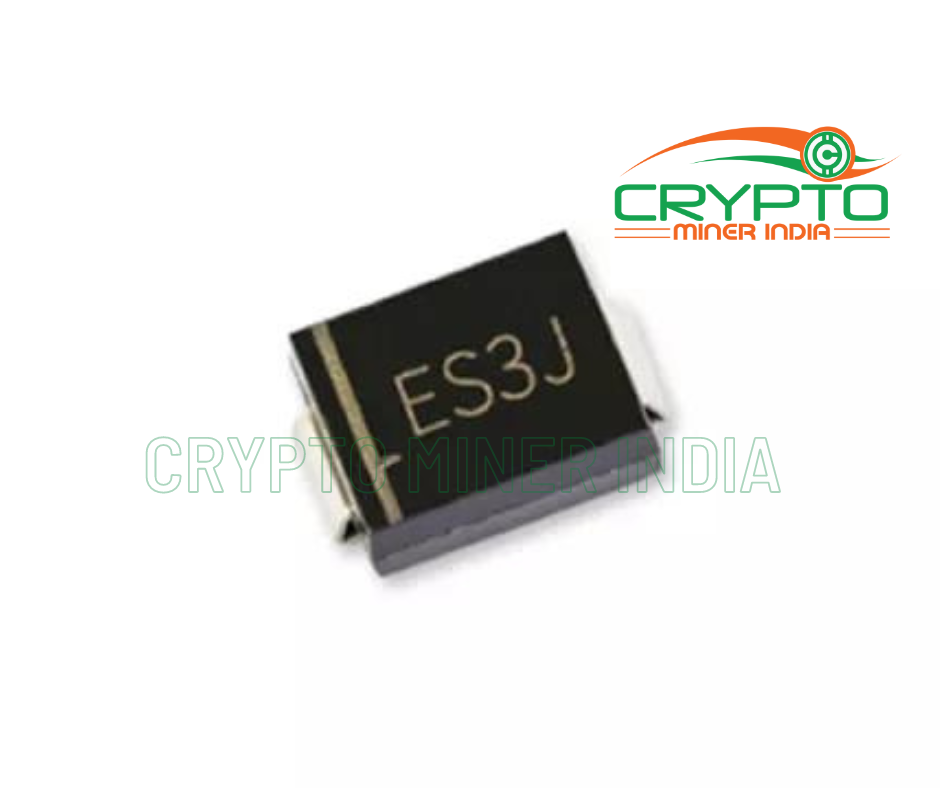

ES3J super-fast recovery rectifiers diode 600v

Product analysis:

“ES” stands for ultra-fast recovery diode

“3” means the average forward current is 3A

“J” means the reverse withstand voltage is 600V

ES3J diode Adopt high-quality craft chips. It has good sealing reliability and resistance to electric decay. Laser marking, epoxy resin molding is not easy to fade, and the insulation stability is good. The oxygen-free copper frame and pins are not easy to oxidize, have low internal resistance and have good electrical conductivity.

Features：

Glass-passivated junction

Low-profile package

Easy pick and place

Built-in strain relief

Superfast recovery times for high efficiency

Specification:

Vrrm – Maximum recurrent reverse voltage: 600V

Operating and junction storage temperature range: -55°C to +150°C

Vf – Forward voltage: 1.7 V

If – Forward current: 3A

Max surge current: 100A

Pd – Power dissipation: 1.66 W
