Description

Product description:

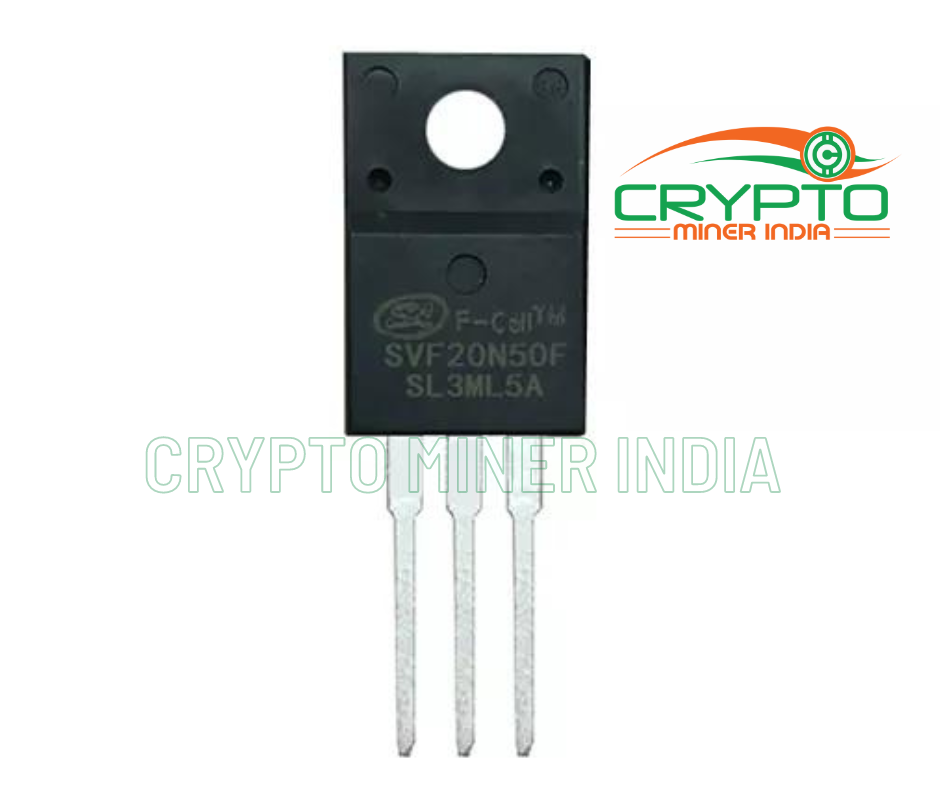

SVF20N50F 20A, 500V N-channel MOSFET is an N-channel enhancement mode power MOS field effect transistor produced by Silan’s proprietary F-CellTM structure VDMOS technology. Improved planar stripe cells and guard ring terminations are tailored to minimize on-state resistance, provide superior switching performance, and withstand high-energy pulses in avalanche and commutation modes.

Product features:

• 20A, 500V, RDS(on)(typ)=0.20Ω@VGS=10V

• Low gate charge

• Low intersection

• Quick switch

• Improved DV/DT capability

Product applications:

These devices are widely used in AC-DC power supplies, DC-DC converters, and H-bridge PWM motor drivers.
